Robot (Quarky)
PictoBlox Block

do line following

  • PictoBlox Extension: Robot (Quarky)
  • Type: C Block
  • Mode: Stage Mode, Upload Mode

Description

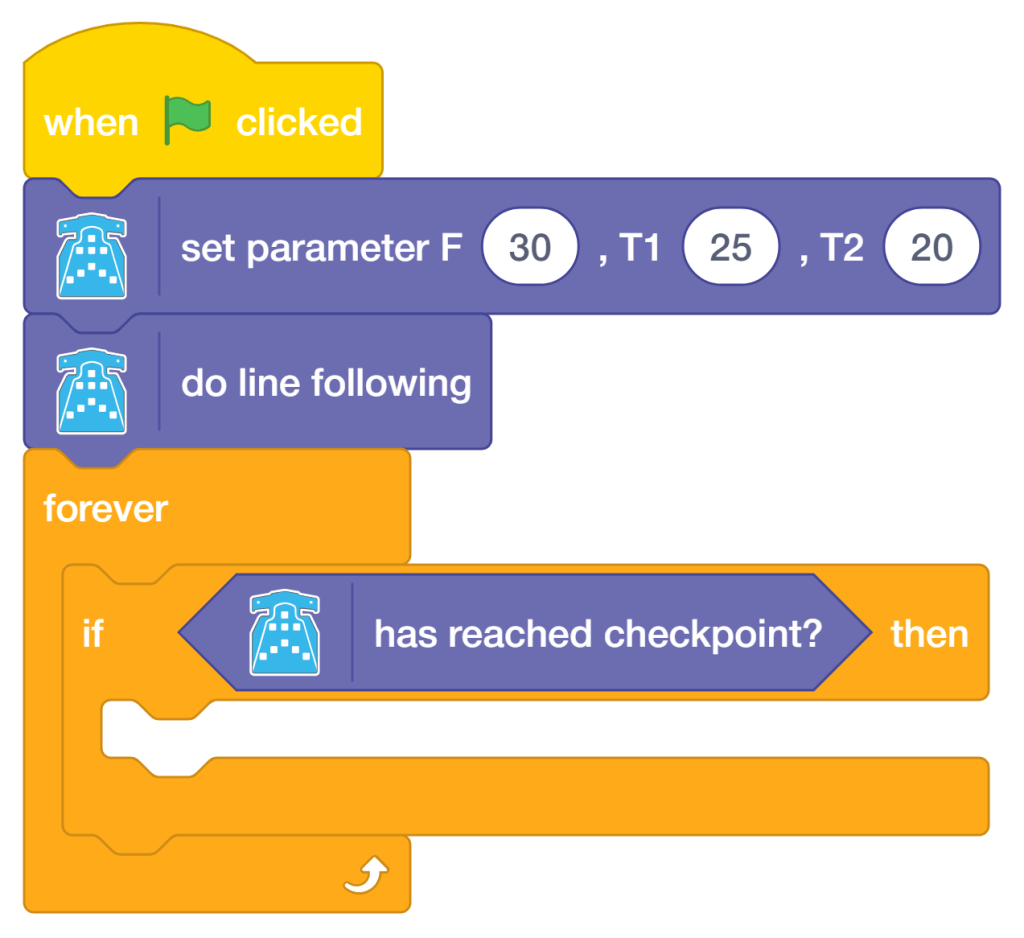

The block performs the automatic line following logic with the parameters specified in the set parameter F () T1 () T2 () block.

Line following

Example

Line Follower Robot – Simplified

The example demonstrates how to make a simplified line following a robot with Quarky.
Download File

Script

Alert: You need to calibrate the IR sensor to get the best line detection by the robot. Also, you need to calibrate the speeds to make the F, T1 and T2 speeds for the robot to follow the line correctly.

Output

Read More

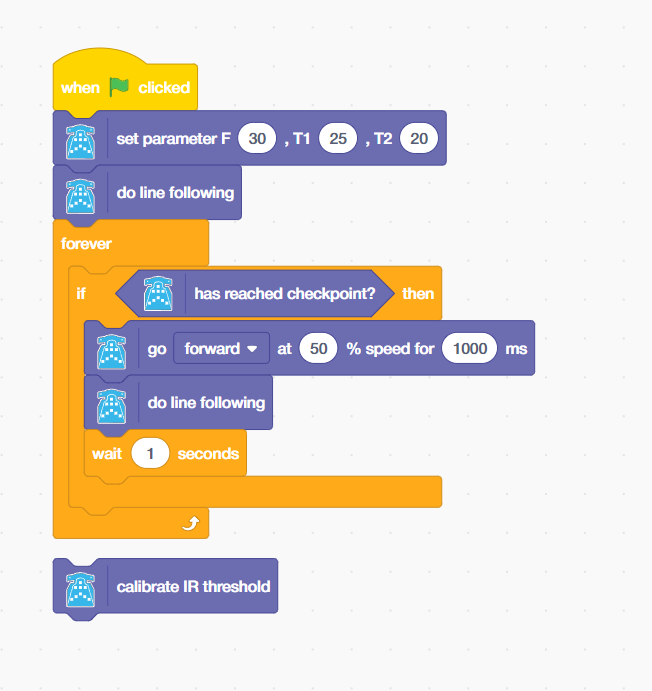

AI Delivery Robot

The example demonstrates how to make a delivery robot that follows the line and stops when it reaches checkpoint 1.
Download File

Script

Alert: You need to calibrate the IR sensor to get the best line detection by the robot. Also, you need to calibrate the speeds to make the robot follow the line correctly.

Output



Read More
