PictoBlox Extension

Lighting – evive, ESP32 & Arduino

Lightning
Extension Description
Manipulate the colors of an RGB LED strip.
  • STEMpedia-Rocket-800x800 Available in: Block Coding
  • STEMpedia-Rocket-800x800 Mode: Stage Mode, Upload Mode
  • STEMpedia-Rocket-800x800 WiFi Required: No
  • STEMpedia-Rocket-800x800 Compatible Hardware in Block Coding: evive, Arduino Uno, Arduino Mega, Arduino Nano, ESP32
  • STEMpedia-Rocket-800x800 Compatible Hardware in Python: Not Applicable
  • STEMpedia-Rocket-800x800 Object Declaration in Python: Not Applicable
  • STEMpedia-Rocket-800x800 Extension Catergory: ,

Introduction

Lighting Extension enables you to manipulate the colors of an RGB LED strip.

Read More

Block Coding Examples

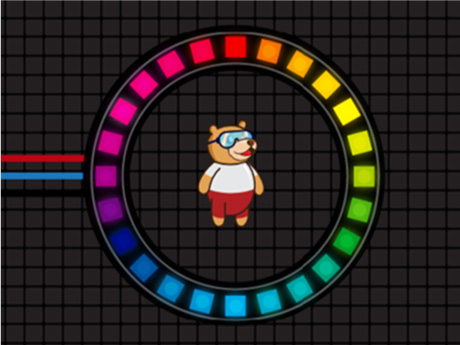

RGB LED Strip Patterns

How to Control an Addressable RGB LED Strip Using evive

Learn how to use RGB LED strips to create colorful lighting designs with easy-to-follow step-by-step instructions. We will explore the Lightning Extension which will generate dynamic color gradients, animate custom light patterns and build exciting DIY colorful lightning designs using Evive.
