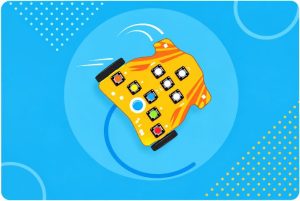

Wizbot Maxx Advance Blocks

Wizbot Maxx Advance Blocks
Extension Description
Learn how to use the Wizbot Maxx Advanced Blocks Extension in PictoBlox. Control Grid Mode, Draw Mode, movement, rotation, speed, motors, button events, and special grid-based motion blocks.
  • STEMpedia-Rocket-800x800 Available in: Block Coding
  • STEMpedia-Rocket-800x800 Mode: Stage Mode
  • STEMpedia-Rocket-800x800 WiFi Required: Yes
  • STEMpedia-Rocket-800x800 Compatible Hardware in Block Coding: Not Applicable
  • STEMpedia-Rocket-800x800 Compatible Hardware in Python: Not Applicable
  • STEMpedia-Rocket-800x800 Object Declaration in Python: NA
  • STEMpedia-Rocket-800x800 Extension Catergory:

Introduction

The Wizbot Maxx Advance Blocks Extension helps users control advanced movement features of Wizbot Maxx using simple block coding.

With this extension, users can switch Wizbot Maxx between Grid Mode and Draw Mode, move it in different directions, rotate it by a selected angle, control individual motors, change speed, and use special grid-based movement blocks.

This extension is useful for activities where students need more control over Wizbot Maxx movement, drawing patterns, turning by angles, and moving across a grid.

Read More

PictoBlox Blocks

Set Wizbot Speed
This block moves Wizbot Maxx in the selected direction after the connection is established.
This block rotates Wizbot Maxx to the right by the specified angle after the connection is established.
This block rotates Wizbot Maxx to the Left by the specified angle after the connection is established.
Switches the state of the wizbot to Grid mode.
This block switches the state of the wizbot to Draw mode.
After the connection is established, move the Wizbot in the forward direction.
Runs the blocks inside if a specified button is pressed of the wizbot.
Runs the left motor of the wizbot in a specified direction.
Runs the right motor of the wizbot in a specified direction.
Moves the wizbot in arc length in specified direction and step length from the options.
Moves the wizbot forward for a √2 step length on the grid pattern.
Moves the wizbot back for a √2 step length on the grid pattern.
