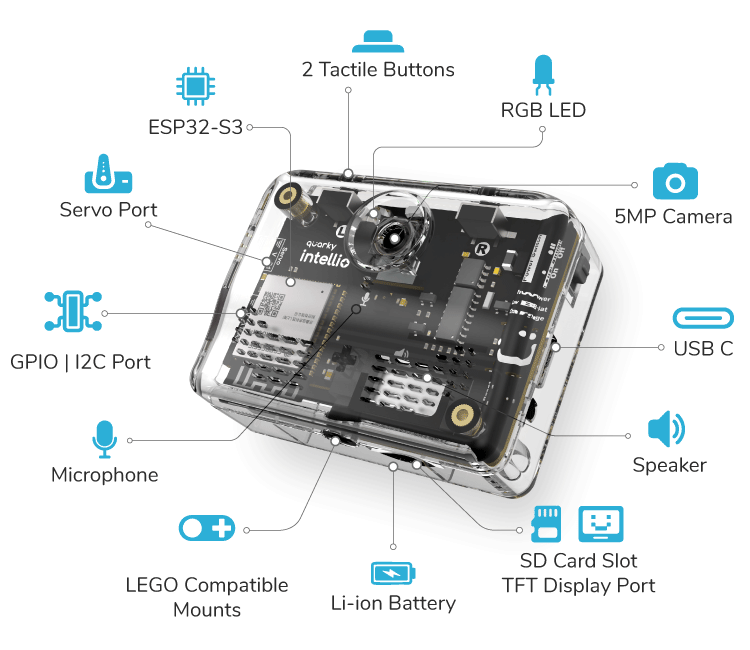

Quarky Intellio is a powerful and compact AI, AR, and robotics module designed for hands-on learning and smart project building. It is powered by a 3.7V 1000mAh Li-ion battery, delivering up to 3.5 hours of operation, and features an ESP32-S3 processor with 16MB flash memory for handling AI, vision, and real-time processing tasks.

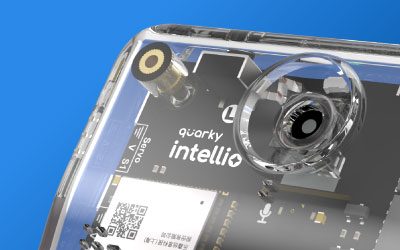

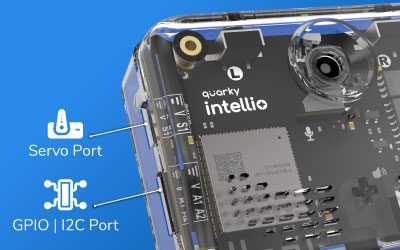

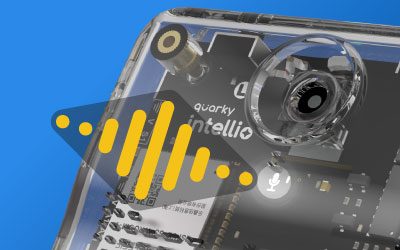

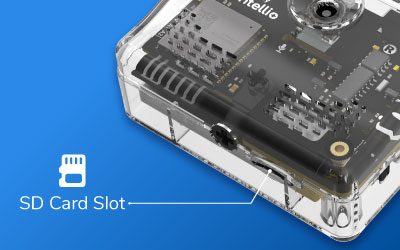

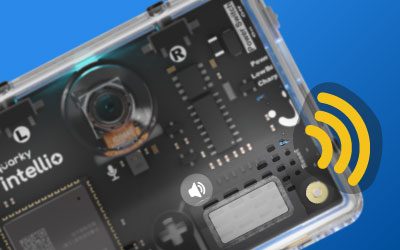

The board includes a built-in OV5640 auto-focus camera (72° FOV), an omnidirectional MEMS microphone, a 1W Hi-Res speaker, and a programmable RGB LED for rich audio-visual feedback. For interaction and control, Intellio provides two programmable tactile switches, a servo motor port (3.7–5V, 1A), GPIO and I2C expansion pins, and a MicroSD slot supporting up to 32GB of storage.
With 2.4 GHz Wi-Fi and Bluetooth 5.0 (BLE) connectivity, Quarky Intellio enables wireless streaming, IoT applications, and seamless pairing with PictoBlox. Its LEGO-compatible mechanical design, including axle connectors and mounting holes, makes it easy to integrate into robotics builds, smart devices, and interactive AI projects.
Learn how to program Quarky Intellio using Block coding or Python coding tutorials.

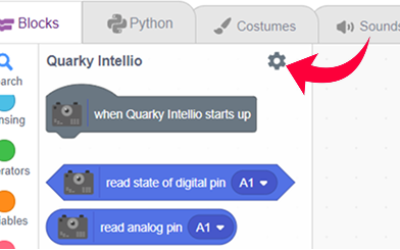

Refer to the documentation of PictoBlox Extension to understand how to use the blocks and functions for the Quarky Intellio.
